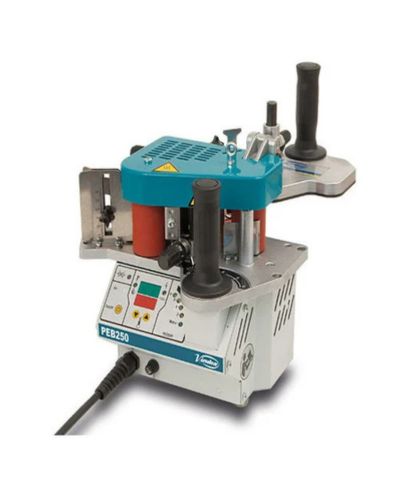

Portable Edge Bander

• Panel Thickness 62 mm
• Tape Thickness 3 mm
• Model Name/Number PEB250
• Brand Virutex
• Input Power 830 W
• Adjustable Working Temperature 120 - 200 Degree Celsius
• Adjustable Working Speed 2, 4, 5, 6 m/min
• Tank Capacity 230 cm3

Features

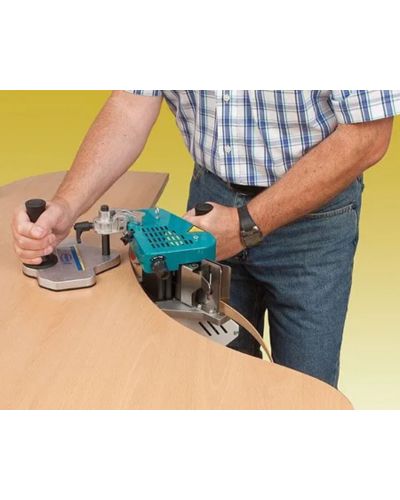

• Hot melt Virutex Portable Edgebander. For PVC, ABS, melamine, laminate or veneer tapes, previously cut to the wanted length, on straight, round or shaped panels. Very practical for small manufacturing series due to its easy operation and fast adjustment. The height tape adjustment and panel thickness is very easy and intutive. Equipped with assisted tape feeding and electronic speed control to work at the most convenient speed.
• Gluing roller with polymerization processing. Allows to band ABS tapes with 3D and glass effect.

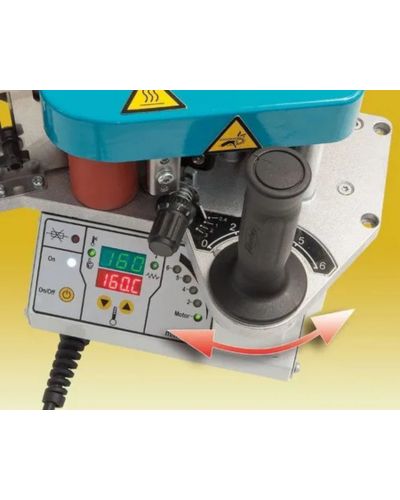

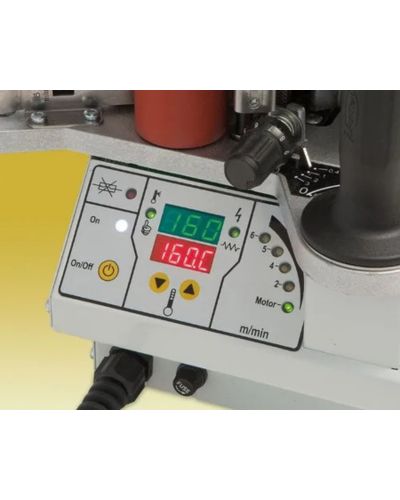

• With electronic temperature control the machine is also equipped with a precise control for the glue dosage on the tape.
• Glue pot and tape sliding base covered by Teflon® for an easy cleaning and maintenance.

Optional

• 5046764 Auxiliary roller. For banding on difficult places, like corners or concave shapes with a close radius.
• 5046586 Table MEB250A for stationary operation
• 5046525 Table MEB250 for stationary operation
• 5600510 TrimmIng set FR256N
• 2800000 Hand edge trimmer AU93
• 2100000 Hand end cutter RC21E
• 2100600 Hand end cutter RC221R (2 mm)
• 5245922 Hand end cutter RC321S (3 mm)
• 5045753 Vacuum table SFV50
• 5045833 Vacuum table SFV150
• 5046400 Pneumatic tilting and swivelling clamping system SVN460
• Cantspray, silicone free non-adherent spray to avoid the glue to stick on the rollers.
• Netspray, a very effective multipurpose cleaner for cleaning rests of glue.

Hot melt glue:

• 2599266 Container of special glue 4 kg
• Working temperature: 150-170º C
• Good adherence and heat resistance.

Additional Information:

• Item Code: PEB250
