Router For Fitting Hinges Consealed

• Brand Virutex
• Hinge Type Spring Hinge
• Weight 4, 3 kg
• Model FR129VB
• Input Power 1000 W
• No-load Speed 14000 - 27000/min
• Chuck Collet 8 mm
• Max. Bit Diameter 26 mm
• Max. Trimming Dimension 165x74 mm
• Max. Trimming Depth 11 mm
• Max. trimming depth (with kit for invisible hinges) 40 mm
• Max. Clamp Opening 200 mm (250 mm)
• Min. Clamp Opening 33 mm

Features:

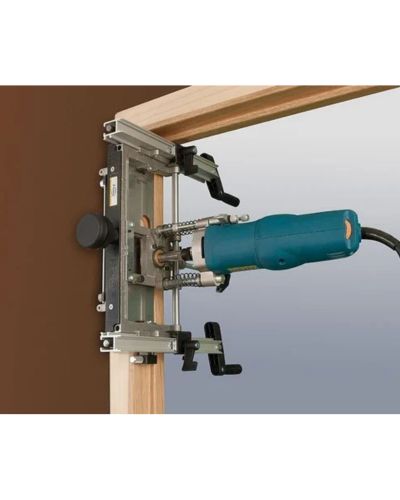

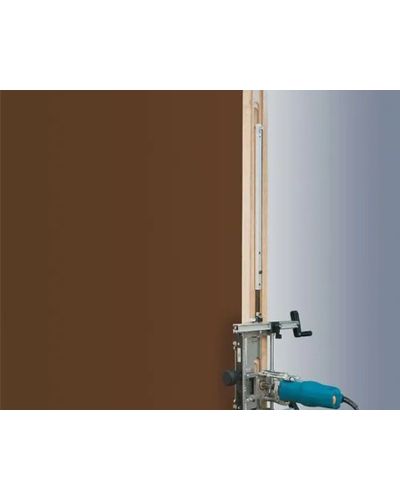

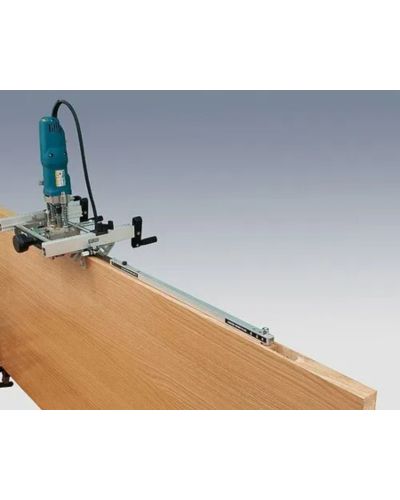

• Special router for installation of all kind of hinges on frames and door leaves. Easy fitting of 3 or 4 hinges per door (right or left open), without measurements and marking.

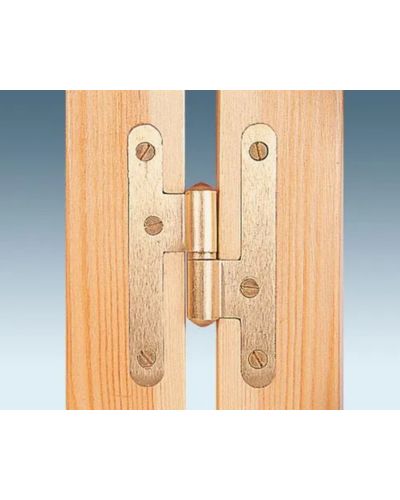

• Double depth stopper allows to mortise both depths of concealed hinges in one operation, without changing the plate. The router is also prepared for fitting any kind of traditional hinges.
• New and easily adjusted clamp system holds the router perfectly on the door and frame, without damaging its surface.Installation of the plate is also very fast, it’s fixed and ready to use by pressing it inside the guide.
• Router it’s equipped with strong 1000 W motor, electronic speed regulation and electronic system to mantain constant speed under load.
• For fitting concealed hinges longer than 160 mm in only 2 steps.
• For fitting cremone locks.
• For fitting strikes plates over 152 mm.
• Spacers for rabbets highest than 13 mm.

Models:

• Ref. 2900805 Router for hinges FR129VB with kit for concealed hinges. Allows to fit hinges with or without template.
• Ref. 2900800 Router for hinges FR129VB for fitting hinges with or without template. Kit for concealed hinges in option.
